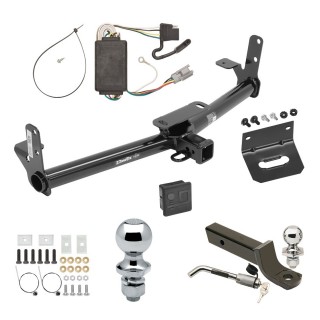

Ultimate Tow Package For 05‑06 Chevrolet Equinox 06‑06 Pontiac Torrent Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1‑7/8" Ball Lock Bracket Cover 2" Receiver
Model: 76028 118391 7005111 118144 63816 7010Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Locking Pin/Clip
2" Chrome Ball
4-Flat Mounting Bracket
1-7/8" Chrome Ball
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2005 - 2006 Chevrolet, Equinox, All Styles
2006 - 2006 Pontiac, Torrent, All Styles
Trailer Hitch Specs:
Wiring Kit Specs:
Part Number | 118391 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Ball Mount Specs:
Part Number | 7005111 |
Brand |
Reese Towpower |
Finish | Black Powder Coat |
Towing Capacity |
6000 lbs |
Tongue Weight Capacity | 600 lbs |
Fits | 2" Receiver |
Drop |
2" |
Rise |
3/4" |
Warranty | 1 Year |
4-Flat Mounting Bracket
Part Number | 118144 |
Fits | 4 Flat Connectors |
Brand | Tow Ready |
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
Warranty | 1 Year |
Hitch Ball Specs:
Part Number | 63816 |
Brand | Draw-Tite |
Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
Towing Capacity | 2,000 lbs. GTW |
Material | Chrome |
Torque | torgue to 160 ft. lbs |
Ball Hole Diameter | 1" |
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 7010 |
Fits | 2" Receiver |
Brand | Draw-Tite |
Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
Warranty |
1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 05 06 2005 2006
$274 70 $399.57 31% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$399.57 $274 70
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $68.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76028 118391 7005111 118144 63816 7010
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Interlock Trailer Tow Hitch Ball Mount Security Kit, Mounting Bracket, Trailer Tow Hitch Ball, Trailer Tow Hitch Tube Cover
Compatibility Chart
Year Range | Make | Model | Style |
---|
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Locking Pin/Clip
2" Chrome Ball
4-Flat Mounting Bracket
1-7/8" Chrome Ball
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2005 - 2006 Chevrolet, Equinox, All Styles
2006 - 2006 Pontiac, Torrent, All Styles
Trailer Hitch Specs:
Wiring Kit Specs:
Part Number | 118391 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Ball Mount Specs:
Part Number | 7005111 |
Brand |
Reese Towpower |
Finish | Black Powder Coat |
Towing Capacity |
6000 lbs |
Tongue Weight Capacity | 600 lbs |
Fits | 2" Receiver |
Drop |
2" |
Rise |
3/4" |
Warranty | 1 Year |
4-Flat Mounting Bracket
Part Number | 118144 |
Fits | 4 Flat Connectors |
Brand | Tow Ready |
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
Warranty | 1 Year |
Hitch Ball Specs:
Part Number | 63816 |
Brand | Draw-Tite |
Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
Towing Capacity | 2,000 lbs. GTW |
Material | Chrome |
Torque | torgue to 160 ft. lbs |
Ball Hole Diameter | 1" |
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 7010 |
Fits | 2" Receiver |
Brand | Draw-Tite |
Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
Warranty |
1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 05 06 2005 2006
Specification | |
Attachment Location | Rear |
Ball Mount Included | Yes |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 4,500 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 4,500 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 675 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 675 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Round Tube |
Be the first to ask a question.
Get Expert Help
Ultimate Tow Package For 05-06 Chevrolet Equinox 06-06 Pontiac Torrent Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1-7/8" Ball Lock Bracket Cover 2" Receiver Install Notes
Installation Instructions for Draw-Tite and Reese Trailer Hitch #76028, #84028, and #CQT76028
Part Numbers:
- 76028
- 84028
- CQT76028
Applications:
- Years: 2005-Current (Chevrolet Equinox), 2010-Current (GMC Terrain), 2006-2009 (Pontiac Torrent), 2002-2007 (Saturn Vue, except Redline)
- Make and Models: Chevrolet Equinox, GMC Terrain, Pontiac Torrent, Saturn Vue
For the most up-to-date application years and trim levels, refer to the manufacturer's website.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 18 mm, 19 mm, 3/4"
- 6" Socket Extension
- Utility Knife
- Tape Measure
Step-by-Step Instructions:
1. Remove the Fascia Door:
- If present, remove the fascia door.
2. Install Carriage Bolts and Blocks:
- Feed the carriage bolt and large block through slots on the bottom of the frame rails using the pull wire as shown in Figure 3.
3. Position the Hitch:
- Raise the hitch into position, lifting the bumper mounting bracket over the fascia where necessary.
- Secure the hitch using M12 bolts and conical washers into the existing weld nuts. Be cautious not to push the bolts into the frame (Figure 1).
4. Install Hardware:
- Thread the conical washer over the pull wire to hold the bolt in place, remove the pull wire, and attach the hex nut.
- Hand-tighten all bolts.
5. Secure to Bumper:
- For vehicles without weld nuts:
Pull carriage bolts and small blocks through the end of the bumper and the bumper mounting bracket using the pull wire. Attach the conical washer and nut. - For vehicles with weld nuts:
Install the M12 bolts and conical washers into the existing weld nuts on the bumper (Figure 2).
6. Tighten Fasteners:
- Torque all 1/2-13 GR5 fasteners to 75 lb-ft (102 N·m).
- Torque all M12 CL10.9 fasteners to 92 lb-ft (125 N·m).
7. Replace or Modify Fascia Door:
- Replace the fascia door for 2005-2015 Equinox models.
- For 2016 and newer models, trim the fascia door as shown in Figure 4 (obtain the owner's permission before trimming).
- Return fascia doors to the owner for other models.
Hardware List:
- 4 × Carriage Bolt (1/2-13 × 1.50 GR5)
- 2 × Spacer Block (.250 × 1.50 × 3.00)
- 8 × Conical Washer (1/2")
- 4 × Hex Nut (1/2-13 GR2)
- 6 × Bolt (M12 × 1.75 × 45 CL10.9)
- 2 × Small Spacer Block (.250 × 1.50 × 2.0)
- 4 × Pull Wire (1/2-13)
Safety Notes:
- Always wear safety glasses during installation.
- Ensure proper torque for all fasteners to keep the hitch secure while towing.
- Do not cut access or attachment holes with a torch.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust entry.
- Periodically check all fasteners for tightness.
Specifications:
- Max Gross Trailer Weight (Weight Carrying/Weight Distributing): 4,500 lbs (2,043 kg)
- Max Tongue Weight (Weight Carrying/Weight Distributing): 675 lbs (306 kg)
- Installation Time: Approximately 30 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warning: Improper use or failure to follow instructions may result in property damage, serious injury, or death. Always consult your vehicle and trailer manuals for compatibility and installation guidelines.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118391
Tools Required:
- Drill with 3/32" drill bit.
- Test light or trailer for verification.
Step-by-Step Instructions:
-
Locate the Vehicle’s Harness Area:
- Open the rear tailgate and locate the vehicle’s jack storage compartment on the driver’s side.
- Remove the panel and tire jack to access the harness area.
-
Find the Trailer Harness Connector:
- Inside the driver’s side jack compartment, locate the vehicle’s trailer harness connector.
- This is a 6-pin connector taped to the vehicle’s wiring harness near the floor of the jack compartment.
-
Install the T-Connector:
- Remove the tape on the vehicle’s 6-pin connector.
- Plug the T-Connector into the vehicle’s trailer plug harness.
- Ensure the T-Connector is fully inserted with locking tabs in place.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
- Clean the grounding area to remove dirt and rustproofing.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind any surface prior to drilling to avoid damage to the vehicle or personal injury.
- Do not drill into exposed surfaces.
-
Test the Installation:
- Use a test light or trailer to verify the T-Connector’s functionality.
- Ensure all connections are complete for the T-Connector to function properly.
-
Store the 4-Flat Connector:
- When not in use, store the 4-flat connector in the jack storage compartment.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps).
- Max. tail lights: (5 amps).
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions carefully.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional guidance.
- Test thoroughly to ensure proper installation.
