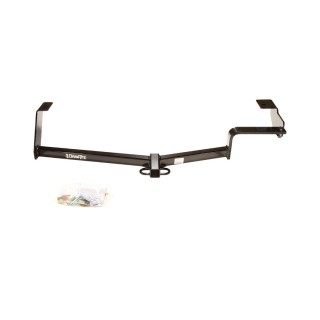

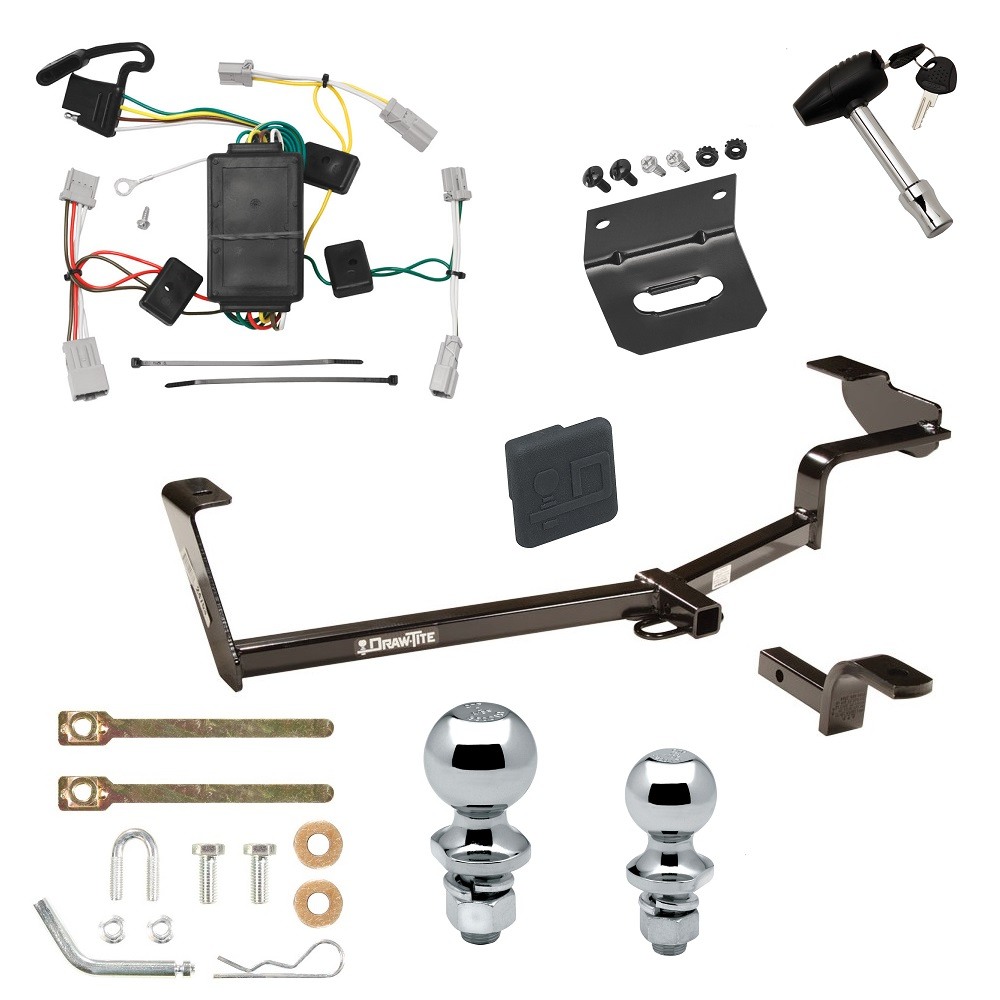

Ultimate Tow Package For 06-15 Honda Civic 4 Dr. Sedan Trailer Hitch w/ Wiring Draw-Bar Dual 2" and 1-7/8" Ball Lock Bracket Cover 1-1/4" Receiver

Part Number	247630
Brand	Draw-Tite
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

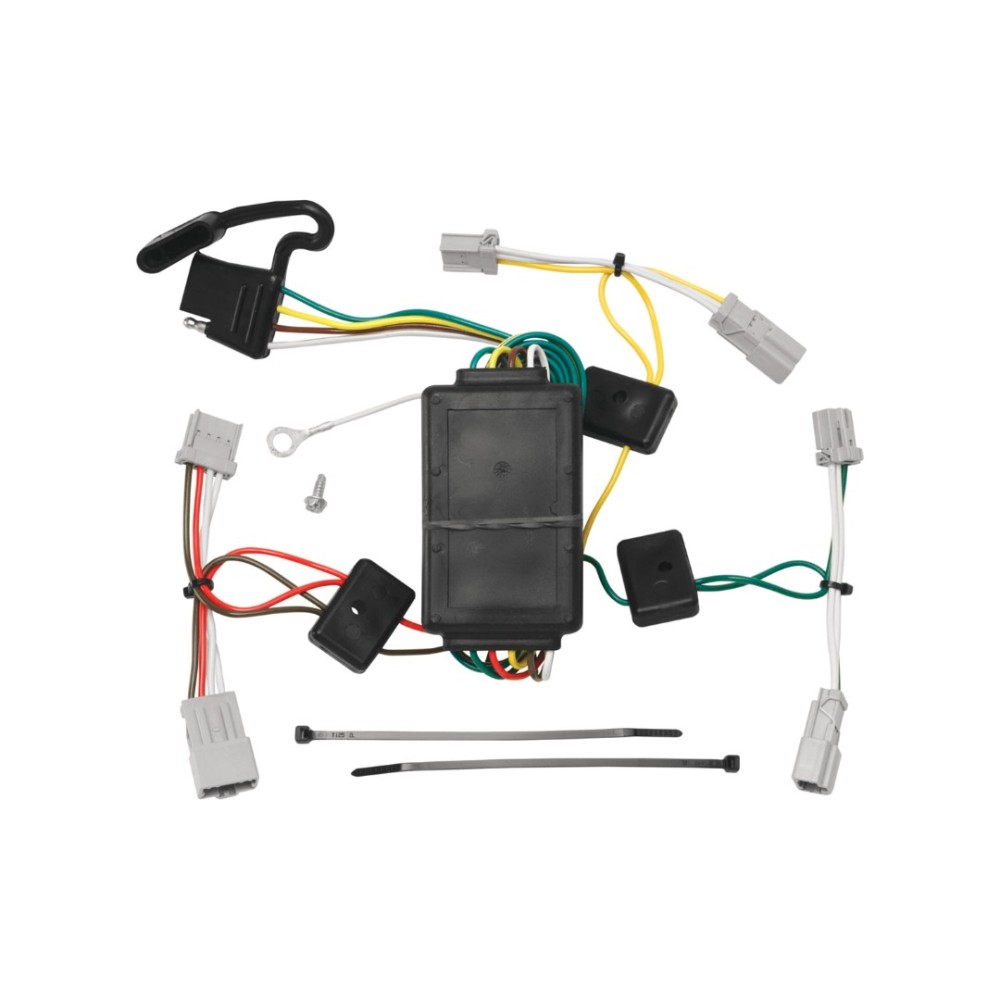

Wiring Kit Specs:

Part Number	118420
Brand	Tekonsha
Warranty	1 Year
Installation Instructions



Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-7/8" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime



Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any  1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your  1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year



4-Flat Mounting Bracket

Part Number	118144
Fits	4 Flat Connectors
Brand	Tow Ready
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging
Warranty	1 Year



Hitch Ball Specs:

Part Number	63820
Brand	Draw-Tite
Size	2" x 3/4" x 1-1/2"
Towing Capacity	3,500 lbs. GTW
Material	Chrome
Torque	Torque to 160 ft. lbs
Shank Diameter	3/4"
Warranty	Lifetime

Hitch Ball Specs:

Part Number	63810
Brand	Draw-Tite
Size	1-7/8" x 3/4" x 1-1/2"
Towing Capacity	2,000 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 160 ft. lbs
Ball Hole Diameter	3/4"
Warranty	Lifetime



Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need

.
Partial list of fitment years: 06 07 08 09 10 11 12 13 14 15 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015
