Ultimate Tow Package For 07-15 22-24 Nissan Altima 09-14 Maxima Trailer Hitch w/ Wiring Draw-Bar Dual 2" and 1-7/8" Ball Lock Bracket Cover 1-1/4" Receiver Reese
Model: 77168 118470 3594 580407 63820 63810 7051500 118144Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Draw-Bar w/ Pin/Clip
Security Lock Pin
1-7/8" and 2" Chrome Ball
Rubber Hitch Plug Cover
4-Flat Mounting Bracket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2022 - 2024 Nissan, Altima, Sedan
2009 - 2014 Nissan, Maxima, All Styles
Trailer Hitch Specs:
Part Number | 77168 |
Brand | Reese |
Finish | Black Powdercoat |
Class | 1 |
Max gross trailer weight | 2,000 lbs |
Max Tongue Weight | 200 lbs |
Warranty | Lifetime |
Installation Instructions | ![]() |
Wiring Kit Specs:
Part Number | 118470 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Specifications:
Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
Brand | Draw-Tite |
Finish | Black Powdercoat |
Length | -10" From Center of Pin Hole to Center of Ball Hole -7-3/8" From center of pin hole to closest edge of ball platform |
Rise | 4" From inside top of hitch opening |
Towing Capacity in Rise Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
Drop | 2-3/4" From inside top of hitch opening |
Towing Capacity in Drop Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
Ball Hole Diameter | 3/4" |
Pin hole diameter | 1/2" |
Warranty | Limited Lifetime |
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-7/8" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Hitch Ball Specs:
Part Number | 63820 |
Brand | Draw-Tite |
Size | 2" x 3/4" x 1-1/2" |
Towing Capacity | 3,500 lbs. GTW |
Material | Chrome |
Torque | Torque to 160 ft. lbs |
Shank Diameter | 3/4" |
Warranty | Lifetime |
Hitch Ball Specs:
Part Number | 63810 |
Brand | Draw-Tite |
Size | 1-7/8" x 3/4" x 1-1/2" |
Towing Capacity | 2,000 lbs. GTW |
Material | Chrome (Cold forged for superior strength) |
Torque | torgue to 160 ft. lbs |
Ball Hole Diameter | 3/4" |
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 7051500 |
Fits | 1-1/4" Receiver |
Brand | Reese |
REESE Towpower rubber receiver plug is designed for 2-in hitch box openings. It keeps the hitch clean and clear of debris. | |
Warranty | 1 Year |
4-Flat Mounting Bracket
Part Number | 118144 |
Fits | 4 Flat Connectors |
Brand | Tow Ready |
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
Partial list of fitment years: 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
$362 18 $542.46 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$542.46 $362 18
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 77168 118470 3594 580407 63820 63810 7051500 118144
- Includes: Class 1 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Lock, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball, Trailer Tow Hitch Tube Cover, Mounting Bracket
Compatibility Chart
Year Range | Make | Model | Style |
---|
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | Yes |
Drilling Required | Yes |
Gross Towing Weight | 2,000 lbs. |
Hitch Class | I |
Material | Steel |
Maximum Tongue Weight | 200 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Square Tube |
Ask a Question about Ultimate Tow Package For 07-15 22-24 Nissan Altima 09-14 Maxima Trailer Hitch w/ Wiring Draw-Bar Dual 2" and 1-7/8" Ball Lock Bracket Cover 1-1/4" Receiver Reese
Be the first to ask a question.
Description

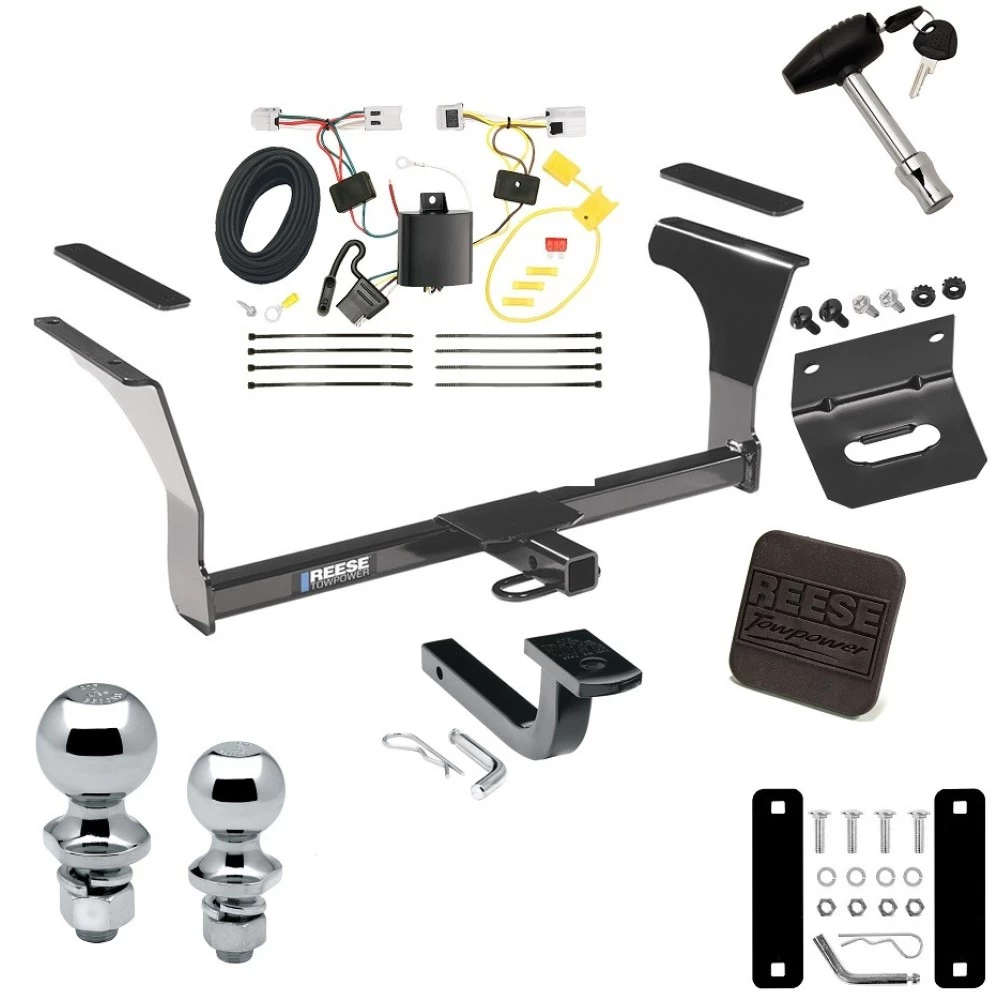

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Draw-Bar w/ Pin/Clip
Security Lock Pin
1-7/8" and 2" Chrome Ball
Rubber Hitch Plug Cover
4-Flat Mounting Bracket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2022 - 2024 Nissan, Altima, Sedan
2009 - 2014 Nissan, Maxima, All Styles
Trailer Hitch Specs:
Part Number | 77168 |
Brand | Reese |
Finish | Black Powdercoat |
Class | 1 |
Max gross trailer weight | 2,000 lbs |
Max Tongue Weight | 200 lbs |
Warranty | Lifetime |
Installation Instructions | ![]() |
Wiring Kit Specs:
Part Number | 118470 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Specifications:
Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
Brand | Draw-Tite |
Finish | Black Powdercoat |
Length | -10" From Center of Pin Hole to Center of Ball Hole -7-3/8" From center of pin hole to closest edge of ball platform |
Rise | 4" From inside top of hitch opening |
Towing Capacity in Rise Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
Drop | 2-3/4" From inside top of hitch opening |
Towing Capacity in Drop Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
Ball Hole Diameter | 3/4" |
Pin hole diameter | 1/2" |
Warranty | Limited Lifetime |
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-7/8" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Hitch Ball Specs:
Part Number | 63820 |
Brand | Draw-Tite |
Size | 2" x 3/4" x 1-1/2" |
Towing Capacity | 3,500 lbs. GTW |
Material | Chrome |
Torque | Torque to 160 ft. lbs |
Shank Diameter | 3/4" |
Warranty | Lifetime |
Hitch Ball Specs:
Part Number | 63810 |
Brand | Draw-Tite |
Size | 1-7/8" x 3/4" x 1-1/2" |
Towing Capacity | 2,000 lbs. GTW |
Material | Chrome (Cold forged for superior strength) |
Torque | torgue to 160 ft. lbs |
Ball Hole Diameter | 3/4" |
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 7051500 |
Fits | 1-1/4" Receiver |
Brand | Reese |
REESE Towpower rubber receiver plug is designed for 2-in hitch box openings. It keeps the hitch clean and clear of debris. | |
Warranty | 1 Year |
4-Flat Mounting Bracket
Part Number | 118144 |
Fits | 4 Flat Connectors |
Brand | Tow Ready |
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
Partial list of fitment years: 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
