Ultimate Tow Package For 10-19 Subaru Outback Wagon Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1-7/8" Ball Lock Bracket Cover 2" Receiver Reese

Ultimate Tow Package For 10-19 Subaru Outback Wagon Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1-7/8" Ball Lock Bracket Cover 2" Receiver Reese
Ultimate Tow Package For 10-19 Subaru Outback Wagon Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1-7/8" Ball Lock Bracket Cover 2" Receiver Reese
Ultimate Tow Package For 10-19 Subaru Outback Wagon Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1-7/8" Ball Lock Bracket Cover 2" Receiver Reese
Ultimate Tow Package For 10-19 Subaru Outback Wagon Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1-7/8" Ball Lock Bracket Cover 2" Receiver Reese
Ultimate Tow Package For 10-19 Subaru Outback Wagon Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1-7/8" Ball Lock Bracket Cover 2" Receiver Reese
Ultimate Tow Package For 10-19 Subaru Outback Wagon Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1-7/8" Ball Lock Bracket Cover 2" Receiver Reese
Ultimate Tow Package For 10-19 Subaru Outback Wagon Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1-7/8" Ball Lock Bracket Cover 2" Receiver Reese
Ultimate Tow Package For 10-19 Subaru Outback Wagon Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1-7/8" Ball Lock Bracket Cover 2" Receiver Reese
Ultimate Tow Package For 10-19 Subaru Outback Wagon Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1-7/8" Ball Lock Bracket Cover 2" Receiver Reese
Ultimate Tow Package For 10-19 Subaru Outback Wagon Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1-7/8" Ball Lock Bracket Cover 2" Receiver Reese
Ultimate Tow Package For 10-19 Subaru Outback Wagon Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1-7/8" Ball Lock Bracket Cover 2" Receiver Reese
Ultimate Tow Package For 10-19 Subaru Outback Wagon Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1-7/8" Ball Lock Bracket Cover 2" Receiver Reese
Ultimate Tow Package For 10-19 Subaru Outback Wagon Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1-7/8" Ball Lock Bracket Cover 2" Receiver Reese
Ultimate Tow Package For 10-19 Subaru Outback Wagon Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1-7/8" Ball Lock Bracket Cover 2" Receiver Reese
Ultimate Tow Package For 10-19 Subaru Outback Wagon Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1-7/8" Ball Lock Bracket Cover 2" Receiver Reese
$322.12
  • Stock: In Stock
  • Brand: Reese
  • Model: 84227 118467 7005111 118144 63816 7000600

Applies to this product only

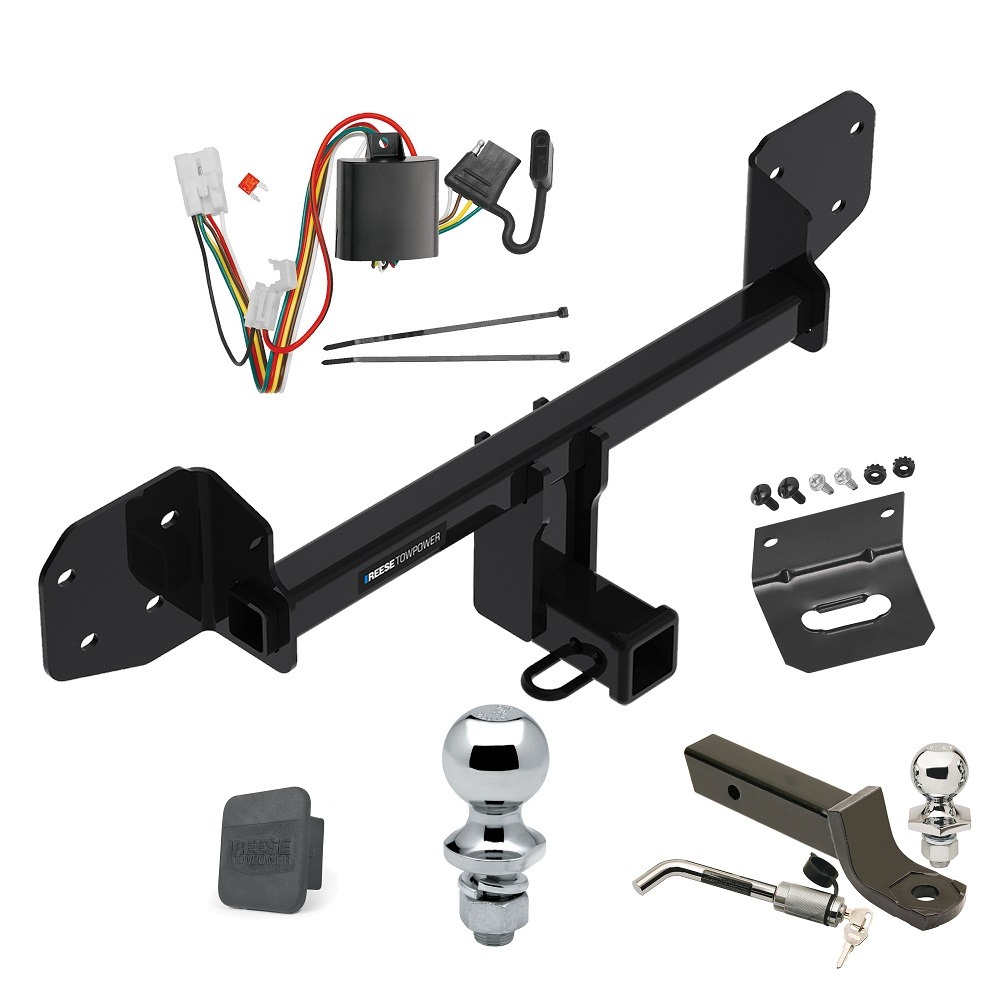

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Locking Pin/Clip
2" Chrome Ball
4-Flat Mounting Bracket
1-7/8" Chrome Ball
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions


Fits The Following Vehicles

2010 - 2019    Subaru, Outback, Wagon, Except Sport

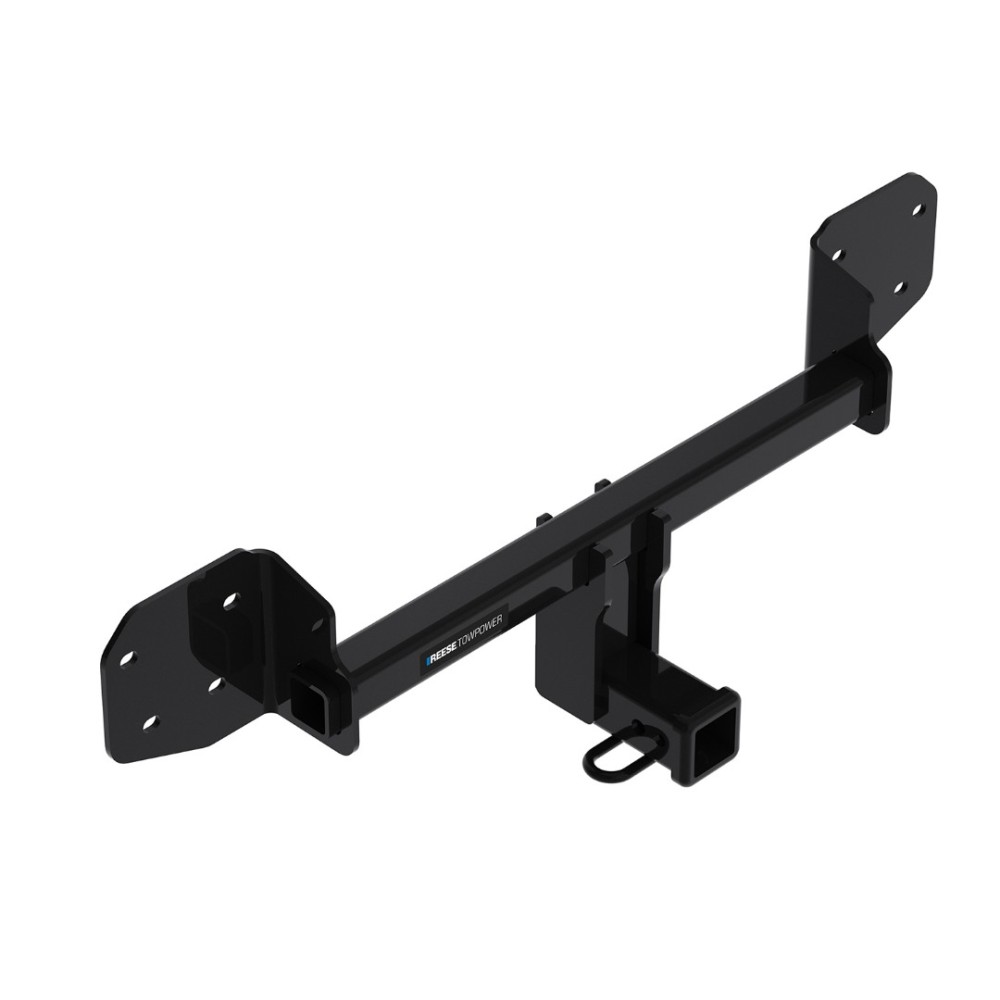

Trailer Hitch Specs:
Part Number 84227
Brand Reese
Finish Black Powdercoat
Class 3
Receiver size opening 2"
Max gross trailer weight   4,000 lbs
Max GTW w/ weight distribution  N/A
Max Tongue Weight 600 lbs
Warranty Lifetime
Installation Instructions


Wiring Kit Specs:
Part Number 118467
Brand Tekonsha
Warranty 1 Year
Installation Instructions


Ball Mount Specs:

Part Number 7005111
Brand

Reese Towpower

Finish Black Powder Coat
Towing Capacity

6000 lbs

Tongue Weight Capacity 600 lbs
Fits 2" Receiver
Drop

2"

Rise

3/4"

Warranty 1 Year



4-Flat Mounting Bracket

Part Number 118144
Fits 4 Flat Connectors
Brand Tow Ready
Mounts electrical connector to attachment bracket
Includes screws and nuts
Attractive point-of-purchase packaging
Warranty 1 Year



Hitch Ball Specs:

Part Number 63816
Brand Draw-Tite
Size 1-7/8" x 1" x 2-1/8",  torgue to 160 ft. lbs
Towing Capacity 2,000 lbs. GTW
Material Chrome
Torque torgue to 160 ft. lbs
Ball Hole Diameter 1"
Warranty Lifetime



Rubber Hitch Plug Specs:

Part Number 7000600
Fits 2" Receiver
Brand Reese
REESE Towpower rubber receiver plug is designed for 2-in hitch box openings. It keeps the hitch clean and clear of debris.
Warranty 1 Year

Questions or Comments? Call 702-374-8999

Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.

Partial list of fitment years: 10 11 12 13 14 15 16 17 18 19 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019
Specification
Attachment Location Rear
Ball Mount Included Yes
Color Black
Drilling Required Yes
Gross Towing Weight 4,000 lbs.
Hitch Class III
Material Steel
Maximum Tongue Weight 600 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Square Tube
