Ultimate Tow Package For 13-18 Hyundai Santa Fe Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1-7/8" Ball Lock Bracket Cover 2" Receiver

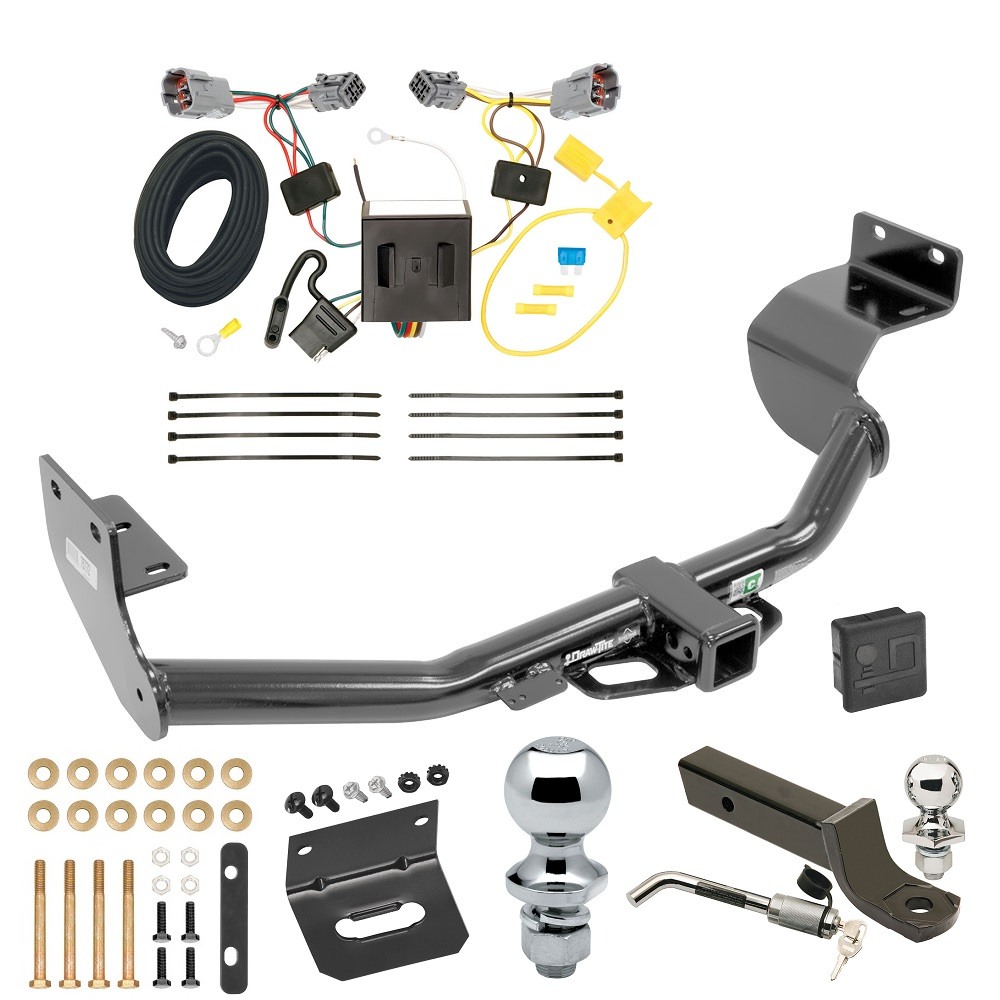

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Locking Pin/Clip
2" Chrome Ball
4-Flat Mounting Bracket
1-7/8" Chrome Ball
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2013 - 2018   Hyundai,  Santa Fe,  Sport (5 Passenger)

Trailer Hitch Specs:





Ball Mount Specs:

Part Number	7005111
Brand	Reese Towpower
Finish	Black Powder Coat
Towing Capacity	6000 lbs
Tongue Weight Capacity	600 lbs
Fits	2" Receiver
Drop	2"
Rise	3/4"
Warranty	1 Year



4-Flat Mounting Bracket

Part Number	118144
Fits	4 Flat Connectors
Brand	Tow Ready
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging
Warranty	1 Year



Hitch Ball Specs:

Part Number	63816
Brand	Draw-Tite
Size	1-7/8" x 1" x 2-1/8",  torgue to 160 ft. lbs
Towing Capacity	2,000 lbs. GTW
Material	Chrome
Torque	torgue to 160 ft. lbs
Ball Hole Diameter	1"
Warranty	Lifetime



Rubber Hitch Plug Specs:

Part Number	7010
Fits	2" Receiver
Brand	Draw-Tite
Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand
Warranty	1 Year




Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.

For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.

Partial list of fitment years: 13 14 15 16 17 18 2013 2014 2015 2016 2017 2018
