Product Details
- Brand: Draw-Tite
- Model: 76021 118651 7005111 118144 63816 7010

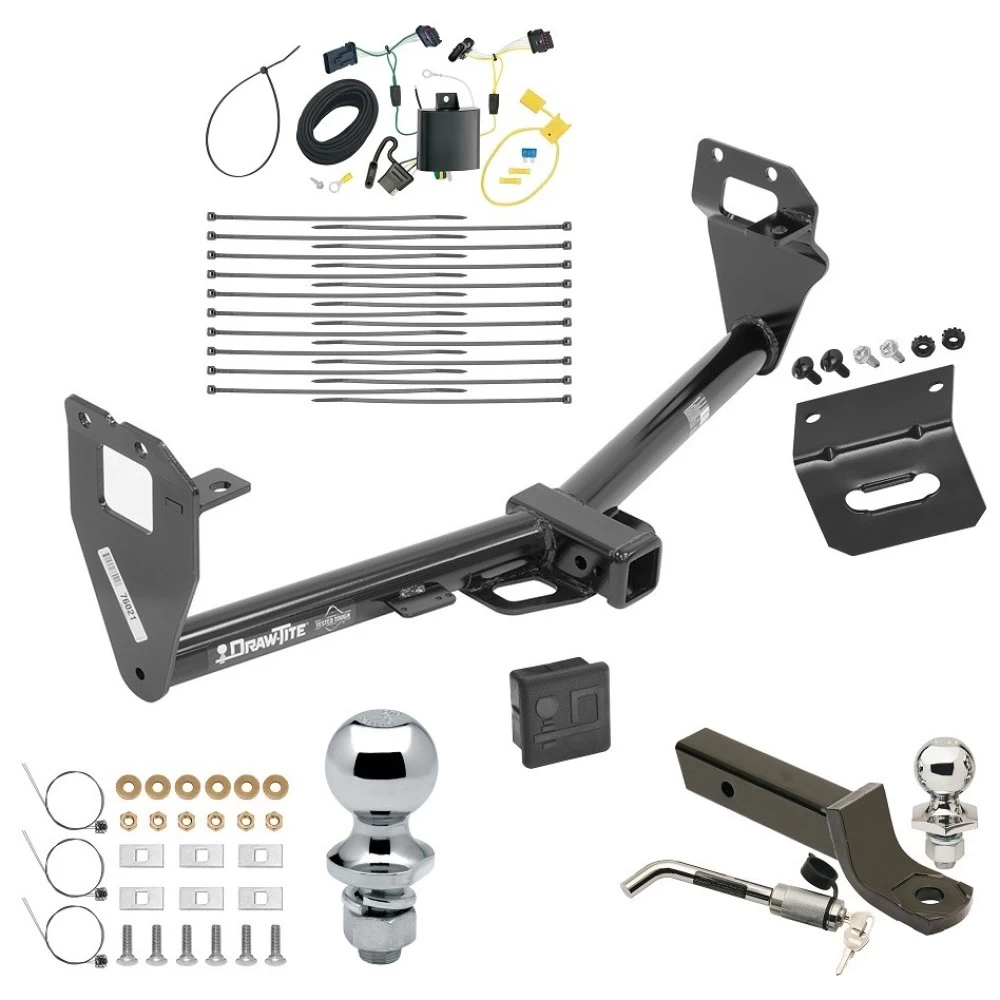

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Interlock Trailer Tow Hitch Ball Mount Security Kit, Mounting Bracket, Trailer Tow Hitch Ball, Trailer Tow Hitch Tube Cover
Compatibility Chart
Get Expert Help
Ultimate Tow Package For 15-23 Jeep Renegade Trailer Hitch w/ Wiring 2" Drop Mount Dual 2" and 1-7/8" Ball Lock Bracket Cover 2" Receiver Install Notes

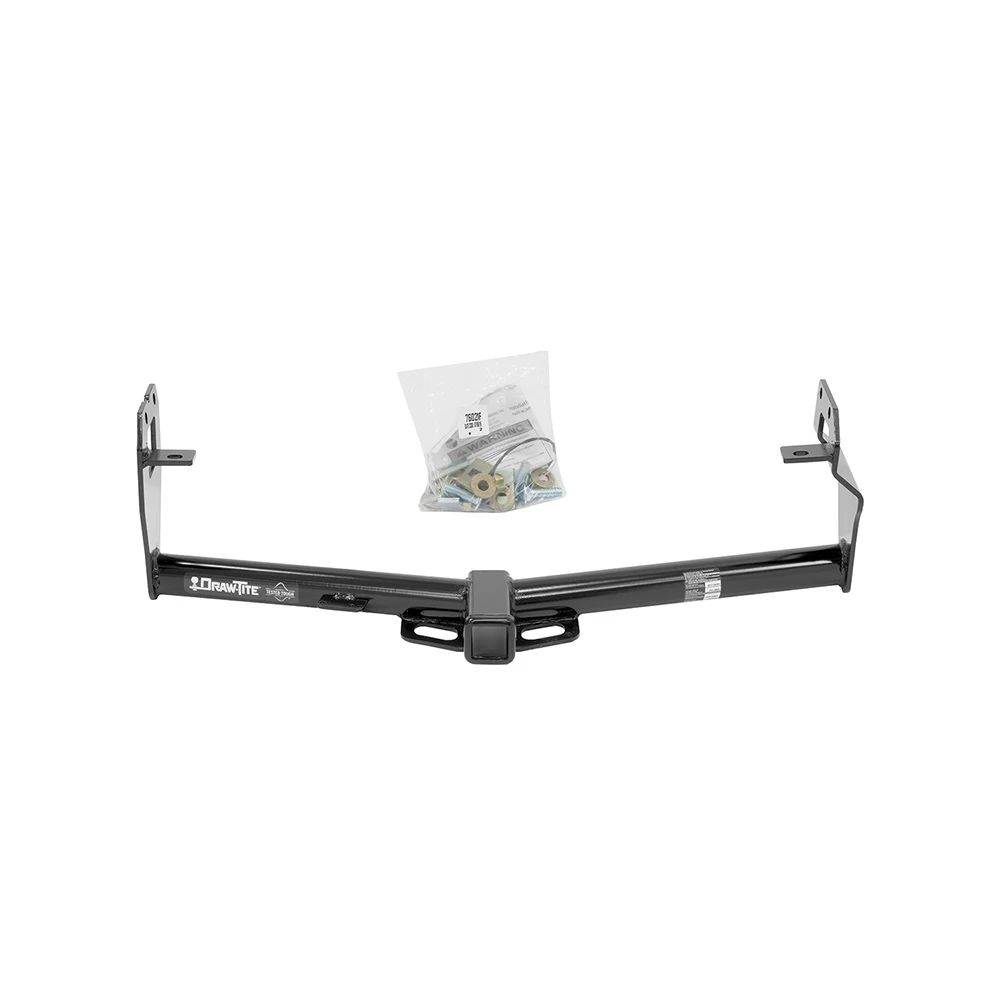

Installation Instructions for Jeep Renegade (2015-Current)
Part Numbers:
- 76021
- 84021
- CQT76021
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 13mm, 21mm, 3/4"
- Flat Head Screwdriver
- Phillips Screwdriver
- Utility Knife
- Drill with 1” Holesaw
- 6” Socket Extension
Wiring Access Location:
- [Information not provided]
Step-by-Step Instructions:
-
Loosen Wheel Well Fender:
- Use a Phillips screwdriver and a 10mm socket to remove (4) bolts and (1) plastic flange nut from the wheel well fender on the passenger side.
-
Remove Rubber Plugs:
- Use a flat head screwdriver to remove (1) plug from the bottom frame rail and (2) plugs from the outside frame rail on each side.
Note: For models with a factory tow hook, use a 21mm socket to remove the M14 bolts in these locations. Retain bolts for reinstallation and skip Step 3.
-
Drill Access Holes for Fasteners:
- Locate the area between the exhaust hanger bracket and the suspension mount on the frame rail.
- Use a 1” holesaw to drill an access hole on each side.
- Use pliers to bend the heat shield edge down, if necessary.
-
Lower Exhaust and Clear Caulk:
- Use a 13mm socket to remove (1) bolt from the exhaust hanger on each side and lower the muffler temporarily.
- Support the muffler to prevent damage.
- Use a utility knife to remove caulk near mounting holes and slightly bend the heat shield edge down on each side.
-
Install Hitch:
- Fishwire the carriage bolts and spacers into the frame through the drilled holes. Leave pull wires attached.
- Raise the hitch into position and carefully slide it over the exhaust hanger.
- Feed pull wires through bracket holes, remove pull wires, and loosely install conical washers and hex nuts.
- For models with a factory tow hook, loosely secure the factory M14 bolts to the hitch attachment holes.
-
Tighten Fasteners:
- Torque all 1/2" fasteners to 75 lb-ft (102 N·m).
- Torque all M14 fasteners to 115 lb-ft (156 N·m).
-
Reinstall Components:
- Reinstall the exhaust hanger and all fasteners removed from the wheel well fender in Steps 1 and 4.

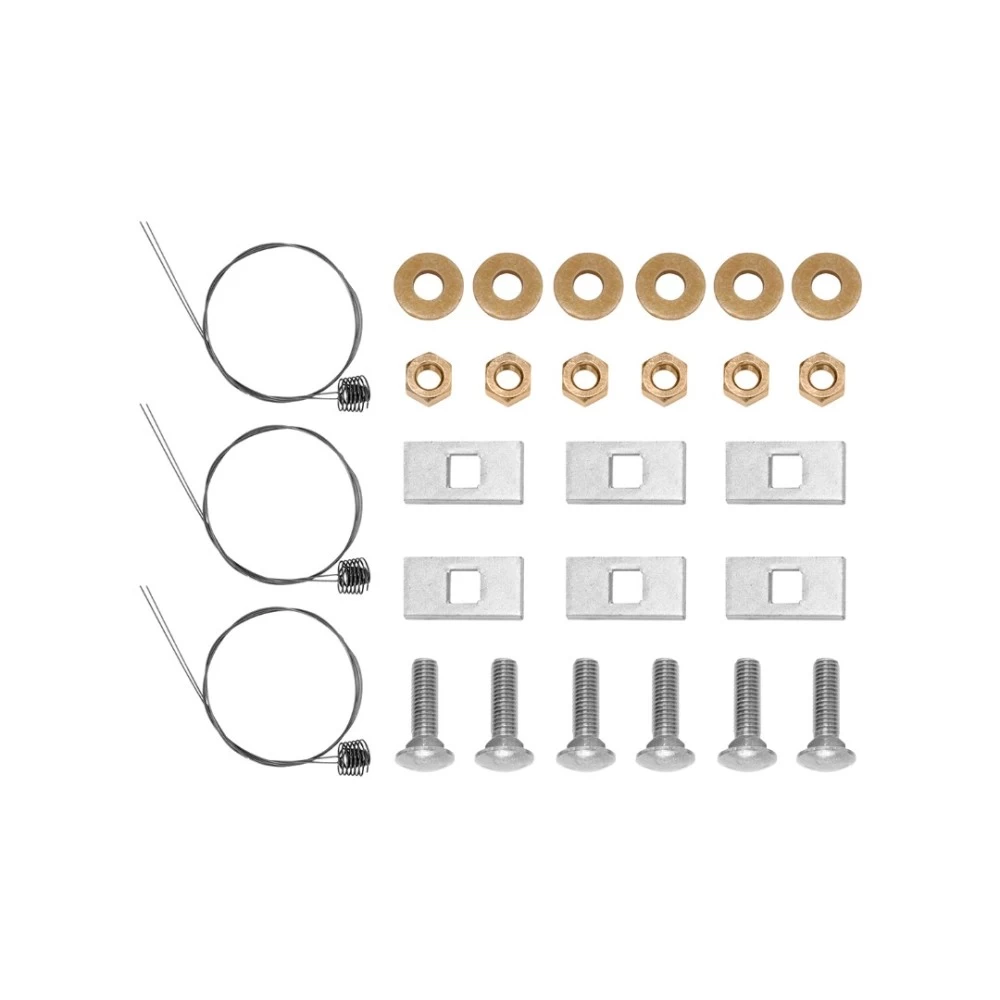

Hardware List:
- (6) 1/2”-13 x 1.75” Grade 5 Carriage Bolts
- (6) .250 x 1.0 x 2.0 Spacer Blocks
- (6) 1/2" Conical Washers
- (6) 1/2”-13 Grade 5 Hex Nuts
- (6) 1/2”-13 Pull Wires
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: [Information not provided].
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 40 minutes for a professional installer.
- Contact a professional installer if you are not comfortable performing the installation.

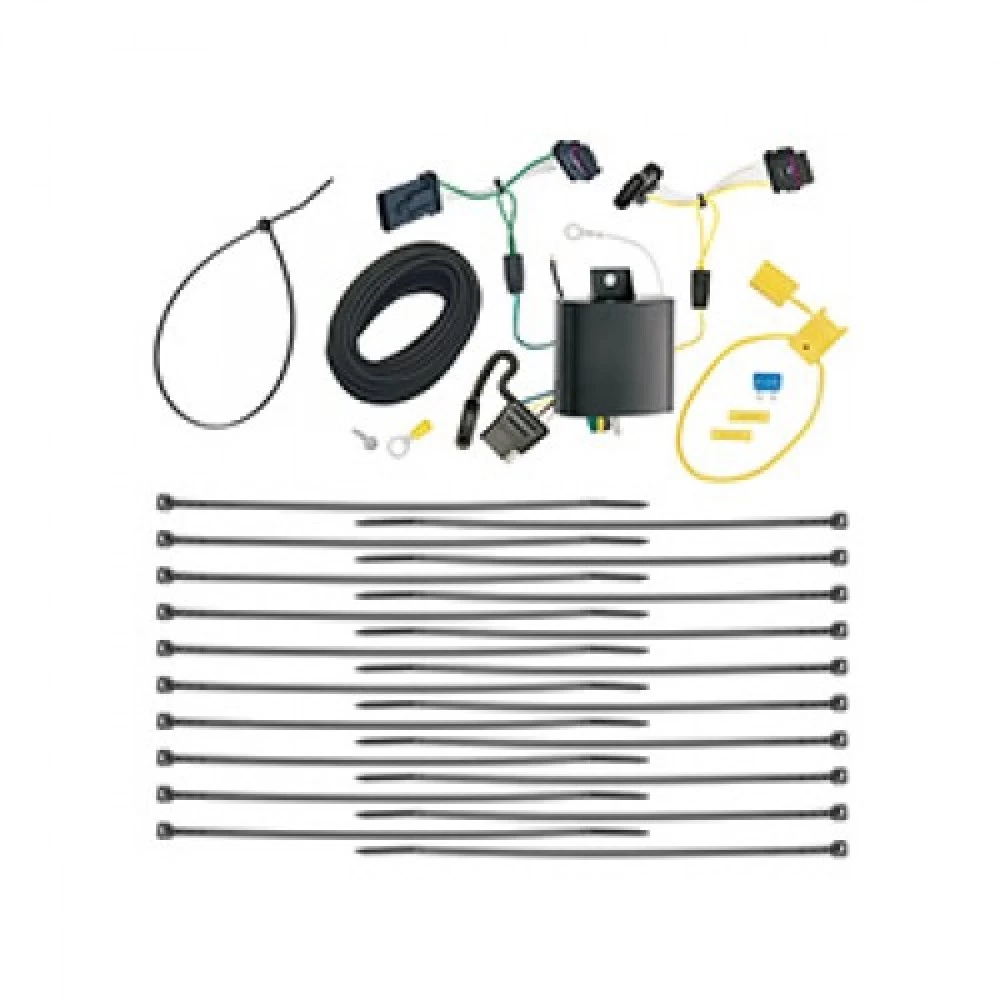

Installation Instructions for T-One® T-Connector for Jeep Renegade
Part Numbers:
- 118651
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Rear Tailgate:
- Remove the threshold, trunk floor panels, and trays. Set aside all items carefully to avoid damage.
-
Remove Interior Trim Panels:
- On the driver and passenger sides, remove access panels to locate the rear of the taillight assemblies.
- Partially remove the interior trim panels to expose the taillight wiring harness.
-
Locate the Vehicle’s Wiring Harness:
- Locate the wiring harness in the trim panel area behind the taillight assembly. Ensure the connection points match the T-One® T-Connector ends.
-
Install the Driver-Side T-Connector:
- On the driver’s side, separate the vehicle wiring connectors without damaging the locking tabs.
- Insert the T-One® T-Connector end with the yellow wire between the vehicle wiring connectors and secure it.
-
Route and Connect the Passenger-Side T-Connector:
- Route the T-One® T-Connector end with the green wire below the threshold cover to the passenger side.
- Repeat Step 4 for the passenger-side wiring harness.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
Caution: Verify the surface before drilling to avoid vehicle damage or personal injury.
-
Mount the Black Box:
- Locate a flat surface near the rear interior area and mount the T-One® T-Connector’s black box with the provided double-sided tape.
-
Route the Power Wire:
- Connect the black 12-gauge wire from the T-One® T-Connector black box to the provided black wire using a yellow butt connector.
- Route the black wire through a grommet and along the exterior frame or follow the existing wiring to the engine compartment up to the battery.
Warning: Avoid hot pipes, heat shields, and the fuel tank when routing the wire.
-
Connect to the Vehicle Battery:
- Disconnect the negative (-) battery cable.
- Attach the fuse holder’s ring terminal to the positive (+) battery cable.
- Connect the other end of the fuse holder to the black power wire using a yellow butt connector.
- Insert the 15-amp fuse into the fuse holder.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable.
- Test the installation with a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Secure the Wiring:
- Use cable ties to secure the T-One® T-Connector harness, avoiding areas that may pinch, cut, or melt the wires.
-
Reassemble the Vehicle:
- Replace all trim panels, threshold, storage covers, and floor covering removed during installation. Ensure no wires are pinched.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
Specifications:
- Max. stop/turn light: 4.2 amps per side
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow all safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional information.
- Store these instructions for future reference.
