Ultimate Tow Package For 22-22 Nissan Altima 16-23 Maxima Trailer Hitch w/ Wiring Draw-Bar Dual 2" and 1-7/8" Ball Lock Bracket Cover 1-1/4" Receiver Reese

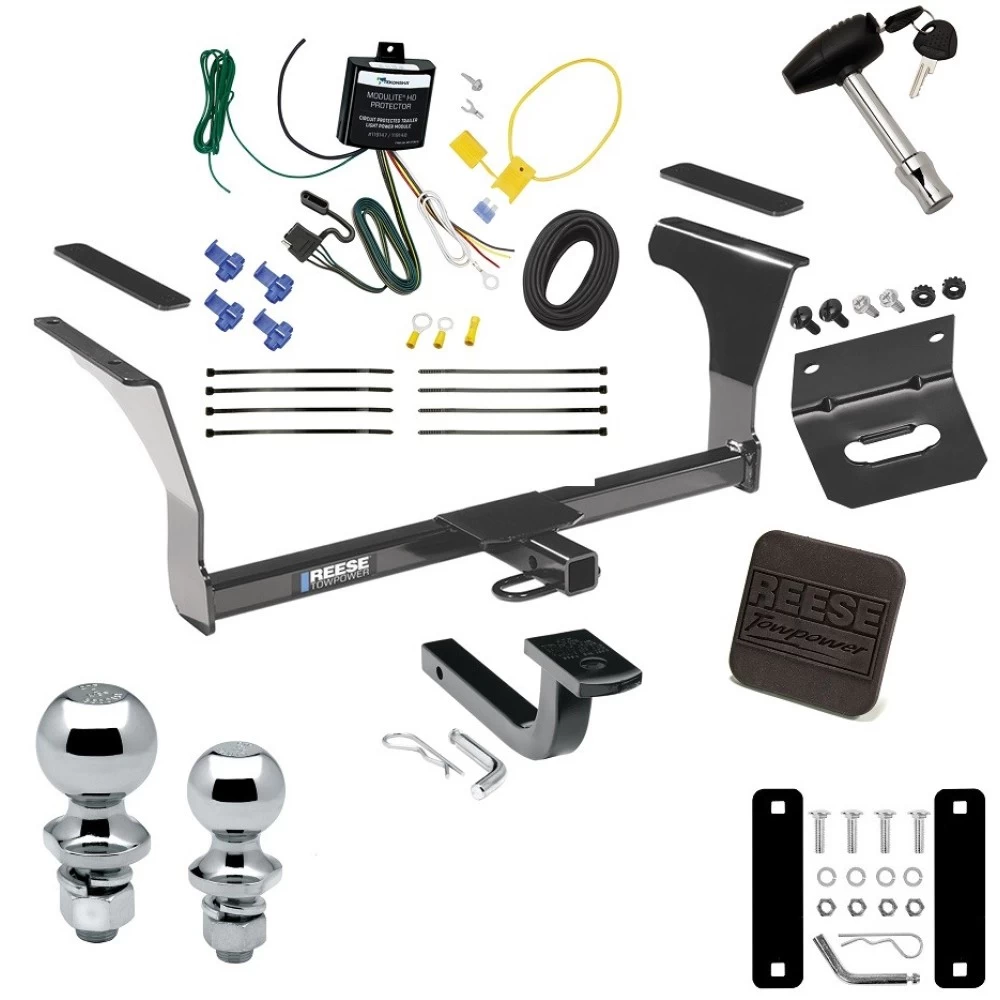

Model: 77168 119148 3594 580407 63820 63810 7051500 118144Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Requires splicing)
Draw-Bar w/ Pin/Clip
Security Lock Pin
1-7/8" and 2" Chrome Ball
Rubber Hitch Plug Cover
4-Flat Mounting Bracket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2016 - 2023 Nissan, Maxima, All Styles
| Part Number | 77168 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Max gross trailer weight | 2,000 lbs |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 119148 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Specifications:
| Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | -10" From Center of Pin Hole to Center of Ball Hole -7-3/8" From center of pin hole to closest edge of ball platform |
| Rise | 4" From inside top of hitch opening |
| Towing Capacity in Rise Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Drop | 2-3/4" From inside top of hitch opening |
| Towing Capacity in Drop Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Ball Hole Diameter | 3/4" |
| Pin hole diameter | 1/2" |
| Warranty | Limited Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63820 |
| Brand | Draw-Tite |
| Size | 2" x 3/4" x 1-1/2" |
| Towing Capacity | 3,500 lbs. GTW |
| Material | Chrome |
| Torque | Torque to 160 ft. lbs |
| Shank Diameter | 3/4" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63810 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 3/4" x 1-1/2" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 3/4" |
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 7051500 |
| Fits | 1-1/4" Receiver |
| Brand | Reese |
| REESE Towpower rubber receiver plug is designed for 2-in hitch box openings. It keeps the hitch clean and clear of debris. | |
| Warranty | 1 Year |
4-Flat Mounting Bracket
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
