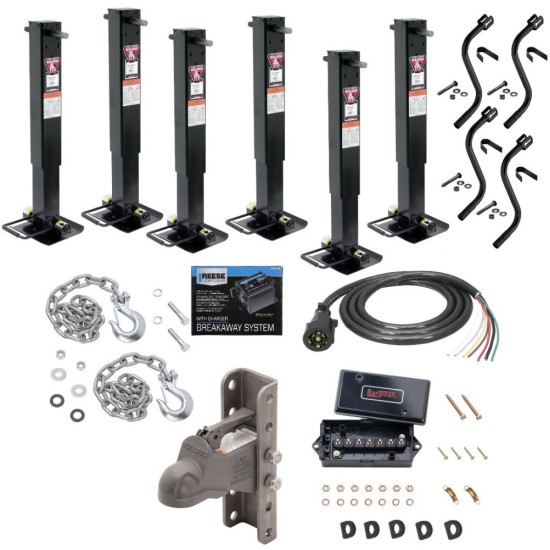

VIP 1 Trailer Jack Package 25K Rating Per Jack w/ Breakaway, 7-Way Wiring, Channel Coupler, Junction Box and Chains

VIP 1 Trailer Jack Package 25K Rating Per Jack w/ Breakaway, 7-Way Wiring, Channel Coupler, Junction Box and Chains
VIP 1 Trailer Jack Package 25K Rating Per Jack w/ Breakaway, 7-Way Wiring, Channel Coupler, Junction Box and Chains
VIP 1 Trailer Jack Package 25K Rating Per Jack w/ Breakaway, 7-Way Wiring, Channel Coupler, Junction Box and Chains
VIP 1 Trailer Jack Package 25K Rating Per Jack w/ Breakaway, 7-Way Wiring, Channel Coupler, Junction Box and Chains
VIP 1 Trailer Jack Package 25K Rating Per Jack w/ Breakaway, 7-Way Wiring, Channel Coupler, Junction Box and Chains
VIP 1 Trailer Jack Package 25K Rating Per Jack w/ Breakaway, 7-Way Wiring, Channel Coupler, Junction Box and Chains
VIP 1 Trailer Jack Package 25K Rating Per Jack w/ Breakaway, 7-Way Wiring, Channel Coupler, Junction Box and Chains
VIP 1 Trailer Jack Package 25K Rating Per Jack w/ Breakaway, 7-Way Wiring, Channel Coupler, Junction Box and Chains
VIP 1 Trailer Jack Package 25K Rating Per Jack w/ Breakaway, 7-Way Wiring, Channel Coupler, Junction Box and Chains
VIP 1 Trailer Jack Package 25K Rating Per Jack w/ Breakaway, 7-Way Wiring, Channel Coupler, Junction Box and Chains
VIP 1 Trailer Jack Package 25K Rating Per Jack w/ Breakaway, 7-Way Wiring, Channel Coupler, Junction Box and Chains
VIP 1 Trailer Jack Package 25K Rating Per Jack w/ Breakaway, 7-Way Wiring, Channel Coupler, Junction Box and Chains
VIP 1 Trailer Jack Package 25K Rating Per Jack w/ Breakaway, 7-Way Wiring, Channel Coupler, Junction Box and Chains
VIP 1 Trailer Jack Package 25K Rating Per Jack w/ Breakaway, 7-Way Wiring, Channel Coupler, Junction Box and Chains
VIP 1 Trailer Jack Package 25K Rating Per Jack w/ Breakaway, 7-Way Wiring, Channel Coupler, Junction Box and Chains
VIP 1 Trailer Jack Package 25K Rating Per Jack w/ Breakaway, 7-Way Wiring, Channel Coupler, Junction Box and Chains
VIP 1 Trailer Jack Package 25K Rating Per Jack w/ Breakaway, 7-Way Wiring, Channel Coupler, Junction Box and Chains
$1,850.00
  • Stock: In Stock
  • Brand: Bulldog
  • Model: 182701x6 Handlex4 50-67-005 14-715810 50-85-320 A2565C0317 49151

Applies to this product only

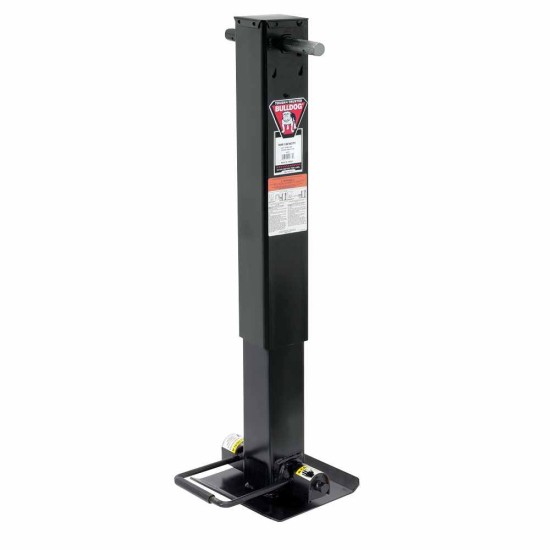

Bulldog's Twin Cam™ is the industry's strongest Drop Leg Jack, featuring a convenient, enclosed pin mechanism with Twin Cam™ action. The unique Twin Cam™ drop leg mechanism actuates the drop leg pins in both directions, giving the operator full control

  • 12,500 lbs. lift capacity
  • 25,000 lbs. static capacity
  • Designed for todays heavy duty agricultural, construction and industrial trailer applications
  • Patented screw stop prevents screw and/or nut damage when the jack is fully extended, keeping the screw in good condition for maximum screw/nut cycle life

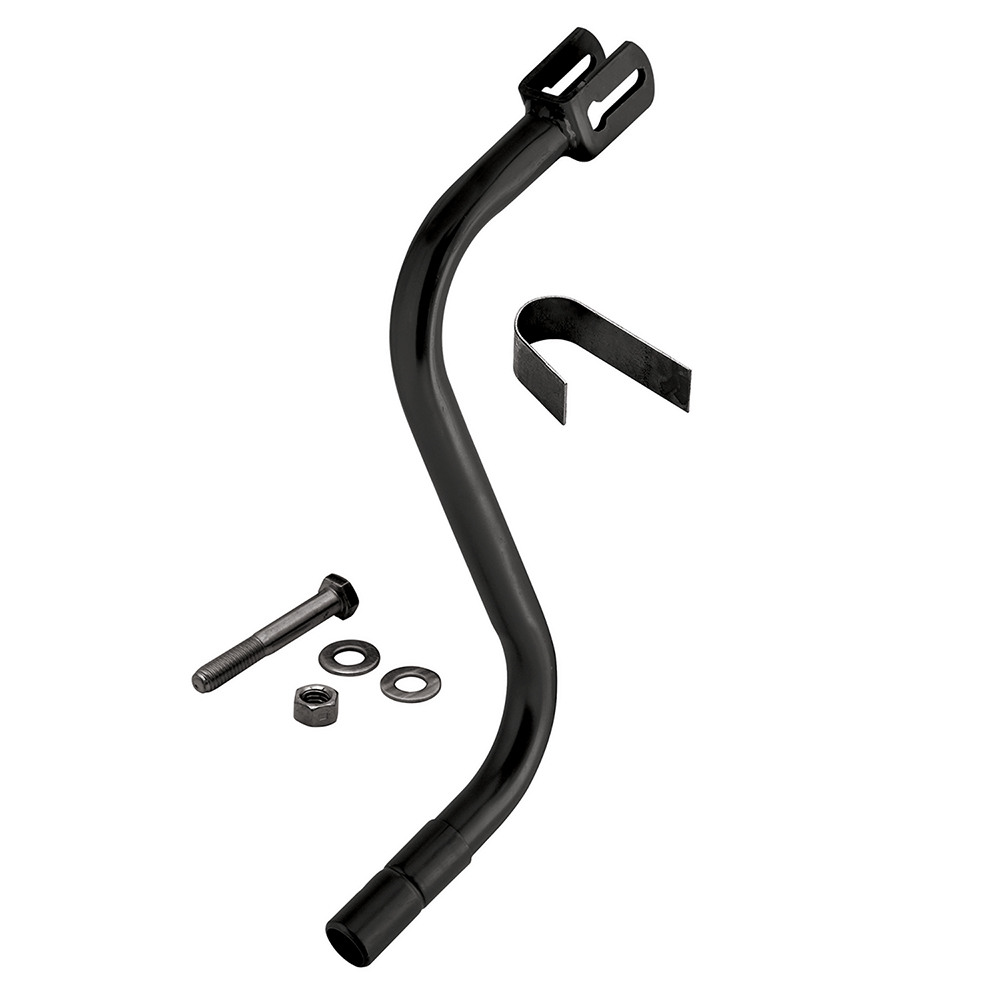

  • Sidewind handle
  • 12.5" screw travel

7-way plastic trailer connector molded to heavy duty 7-way insulated cable. Made with self-cleaning contacts and molded to encapsulate terminals and wires to form one weather resistant, not-corrosive assembly. Primary wire gauges within the insulated cable are: Black and White-10 gauge, Blue-12 gauge, Brown-Red-Green-Yellow-14 gauge. Molded connector can be used with thermo-plastic or metal 7-way car end connectors. Various length and combinations are available.

Provide a fast, simplified way of connecting wires from the trailer connector to the trailer wiring. The box, complete with 5 wire enter/exit ports, includes hardware, rubber grommets, and features external mounting flanges. Dimensions: 3 1/4" x 6 1/2" x 2 1/4"

Now with 3 versatile mounting options! Great for gooseneck trailers.

  • Battery Box
  • Battery (5 amp/hr)
  • Tekonsha Breakaway Switch, 48"
  • Charger

Designed for utility, horse/livestock, cargo, and construction trailer applications, BULLDOG Couplers are the strongest in the industry. The patented cast head "Wedge-Latch" coupler design is offered in heavy-duty, A-frame, and convenient adjustable height models. Adjustable couplers assure level operation for trailers when pulled by a variety of different vehicles. The replaceable latching hardware allows for longer service life.

  • Quick and easy to engage
  • Strong and secure on the road
  • Patented Wedge-Latch ball clamp design
  • Quick to hook up and disconnect
  • In compliance with SAE standard J684

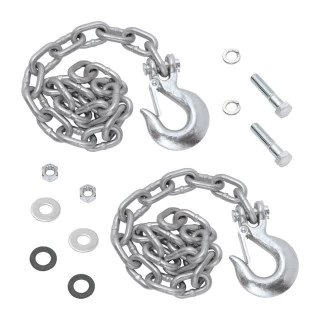

Regardless of how far you’re planning to travel, be it across town or across the country, you’ll need to be sure you have your safety chains from REESE® securely in place. Safety chains - which are required by law - are usually link chains that connect the rear of your tow vehicle to the front of your trailer. As their name states, these chains are a safety measure when towing, adding an extra layer of connection protection in case your trailer should become uncoupled from your towing setup. With REESE safety chains, you can tow with confidence, knowing your towing setup is protected against the ‘what ifs’. REESE, making the journey as enjoyable as the destination.

  • 44 In. Length
  • 20,000 lbs. Capacity
  • Yellow Zinc Finish
  • Required by law in most states



Specification
Jack Style Landing Gear
Finish Black
Static Capacity 150000
Lift Capacity 75000
Lift Style Sidewind
Travel 26"
Retracted 28.5”
Extended 54.5”
Clearance Varies
Leg Drop Leg
Swivel No
Foot Footplate
Jack Shape Square
Description Facts Twin Cam Drop Leg Landing Gear Jacks Landing Gear– spring return. Crank included
Spring Return Yes
